World's first battery-free pacemaker gets its power from microwaves

battery free pacemaker 40576178  red puzzle heart with stethoscope on brown wooden background

Researchers at Rice University and the Texas Heart Institute have created the internal components for a battery-free pacemaker, designed to be inserted directly into the heart and free of wires. The team has successfully demonstrated the device in a pig heart, showing that it can tune the animal’s heart rate from 100 to 172 beats per minute.

The prototype — which is smaller than a dime in size — is being shown off this week at the Institute of Electrical and Electronics Engineers’ International Microwave Symposium (IMS) in Honolulu. It incorporates a receiving antenna, AC-to-DC rectifier, power management unit, and pacing activation signal. It receives power via microwaves in the 8-to-10 GHz electromagnetic frequency spectrum.

“The majority of conventional pacemakers use a large device equipped with a battery close to the heart to induce pacing with wires or leads,” Aydin Babakhani, an associate professor in the Electrical and Computer Engineering department at Rice University, told Digital Trends. “These leads cause significant complications, such as infections.”

To resolve this issue, recently pacemaking companies have introduced leadless pacemakers that are implanted in the heart. However, these pacemakers have two main problems: They have a non-rechargeable battery and they are limited to single-chamber pacing, while the heart has two chambers that must be paced.

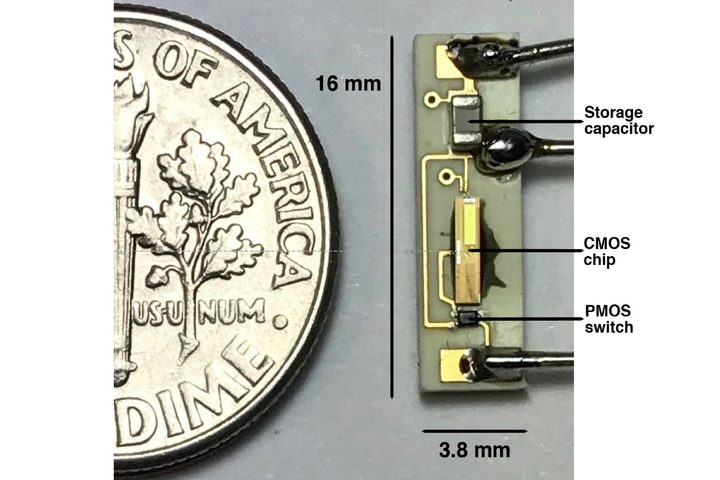

battery free pacemaker screen shot 2017 06 at 19 04 14
Rice Integrated Systems and Circuits/Rice University

“We are solving these two problems,” Babakhani continued. “Our pacemaker does not need a battery. It is a small chip that harvests energy wirelessly from a control unit just under the skin. The control unit has a battery and can be easily replaced. Since chips are small, a large number of them can be implanted in various locations in the heart to perform dual-chamber pacing.”

The resulting pacemaker could help with specific heart diseases, such as Cardiac Resynchronization Therapy (CRT), which require dual-chamber pacing.

The next step, Babakhani said, involves developing the prototype further. The team wants to make the device more robust, to add sensing elements to it, and to demonstrate it in action using multiple chips simultaneously.

In a related piece of work, they are also trying to resolve the complications of defibrillation — the process of restoring the heart’s normal rhythm using a controlled electric shock — using an array of implantable chips. This would greatly reduce the pain caused in defibrillation.
