How to take a screenshot using a Microsoft Surface

Whether you want to capture friends and relatives making funny faces on Skype or need accessible photos of online resources or programs, screenshots benefit users in many ways. With a simple press of a keyboard’s print screen key, you essentially have the ability to capture anything and everything occurring on your desktop at any time.

Difficulty

Easy

Duration

5 minutes

What You Need

  • Microsoft Surface Pro

  • Microsoft Type Cover

  • Microsoft Snipping Tool

  • Microsoft Surface Pen

But what if you want to take a screenshot on a tablet? Most feature methods for capturing an image via a button combination or tool. For Microsoft Surface users, there are several separate methods for capturing screenshots of your tablet’s display.

Whether you’re utilizing a Touch or Type Cover, use the tablet by itself, or rely on a Surface Pen, our comprehensive guide will have you taking screenshots on your Surface in no time.

how to take a screenshot on microsoft surface 3 buttons 768x512

Method 1: Use buttons and keys

With the original Surface through the Surface 3, Microsoft decided not to include a Print Screen key on either its official Touch or Type Cover accessories. That makes taking screenshots less straightforward than on a computer. Instead of using a designated key, owners need to perform a button combination to execute the command.

To take a screenshot, perform the following steps:

Step 1: Press and hold the *Windows *icon button located on the tablet’s screen.

Step 2: With the Windows button pressed, simultaneously push the Lower Volume rocker (minus) located on the side, as shown above.

At this point, the screen should dim, then brighten again, as if taking a snapshot with a camera. Once the screenshot is captured, use the following steps to find it.

Step 3: Click or tap on the *Folder *icon located on the taskbar to open File Explorer.

Step 4: Click or tap on Pictures, listed on the left, or select *OneDrive *instead if it’s configured to store screenshots in the cloud.

Step 5: Double-click or tap on the *Screenshots *folder to access the images.

Note that a compatible third-party keyboard cover may include the Print Screen key. This allows users to capture a screenshot with just one press. Otherwise, use the two-button instructions provided above.

Surface Pro 4 and newer

Because these units don’t have a Windows button, the process is a little different. Here’s how:

Step 1: Hold down the *Power *button.

Step 2: Press the Volume Up button.

Again, the screen will flicker, and the screenshot saves to the same location.

Surface Duo

Microsoft provides two ways to take a screenshot on its Surface-branded phone.

Step 1: Press and hold the *Power *button.

Step 2: Tap Screenshot.

Alternatively, press and hold the Power and Volume Down buttons simultaneously. The capture goes to the Albums > Screenshots folder in the Photos app.

how to take a screenshot on microsoft surface pro 3 type cover 768x512

Method 2: Use a Type or Touch Cover

Although the Type and Touch Covers before the Surface Pro 4 don’t feature a Print Screen key, they do have the ability to capture screenshots using a keyboard shortcut. Type the following on all keyboards without a Print Screen key: Fn + Windows + Spacebar.

The screen will dim, then brighten again, signifying a successful screenshot.

how to take a screenshot on microsoft surface pro 7 type cover 768x511

Surface Pro 4 and newer

There’s no Windows button on the tablet itself, but the Type Covers do include a Print Screen feature. It’s located on the F8 key, meaning the Function key needs to be disabled first. Press it, and the tiny LED turns off, signifying that the Function keys are disabled.

  • PrtScrn: Saves to the clipboard only, unless OneDrive stashes screenshots in the cloud.
  • Windows + PrtScrn: Saves to the local Screenshots folder.

Method 3: Snipping Tool

The Snipping Tool lets you take screenshots of either the entire display or sections of it.

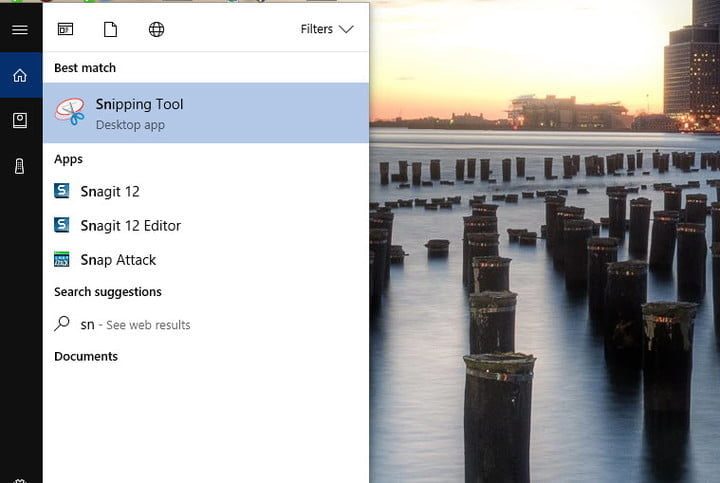

Step 1: Type “snip” in the taskbar’s search field and either left-click on the icon to open the application or right-click the icon to pin it to the Start Menu or taskbar.

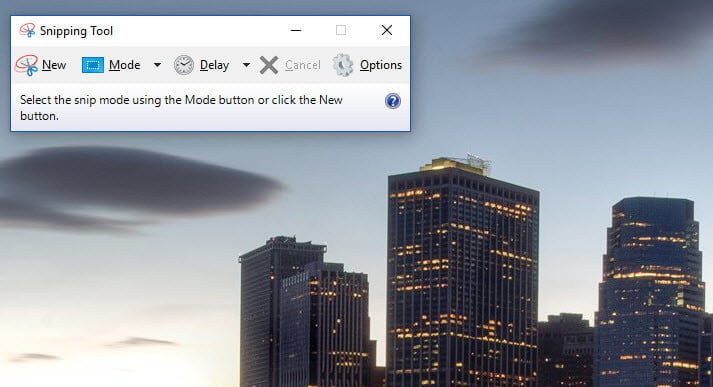

The Snipping Tool provides a few options once it’s open: New, Mode, Delay, Cancel, or Options.

Step 2: Select one of four modes:

  • Free-form Snip: Use your mouse, finger, or pen to capture a custom area.
  • Rectangular Snip: Capture a precise, manually selected rectangular area.
  • Window Snip: Capture a specific window, like a browser.
  • Full-screen Snip: Capture the entire screen.

Step 3: Click New, and respond accordingly.

For example, with Rectangular Snip, the cursor turns into a set of crosshairs that can then be used to create a capture field encompassing a specific portion of the display. Simply drag the resulting cursor over the target area before releasing it to capture the screenshot.

Step 4: Save the screenshot in any location as a JPEG, PNG, or GIF file. Annotate the clip using a Surface Pen, if available.

how to take a screenshot on microsoft surface windows pen settings 768x512

Method 4: Use a Surface Pen

The Surface Pen utilizes an active digitizer within the display, allowing for clearcut precision and detailed pen input. This tool also offers buttons you can customize that give you the ability to perform tasks like erasing, writing, opening apps, and more. One of the Surface Pen’s best and most convenient features is saving screenshots to OneNote on either the app or a desktop.

We’ll go over a few steps below to show you how you can configure your Surface Pen button. It’s a straightforward process:

Step 1: Go to the Action Center and select the All Settings option.

Step 2: From the *Settings *app, select *Devices *from the list.

Step 3: Look for the Pen & Windows Ink on the left and tap it.

Step 4: Scroll all the way down until you see Pen Shortcuts for personalizing the Click Once, Double-click, and Press and Hold assignments. It’s worth noting that the choices available will largely depend on what type of Surface Pen model you have access to.

For example, the 2017 Surface Pro came with a Surface Pen that has an eraser button that can take screenshots and send them to OneNote when operating under the double-click setting. Or you can use the pen to indicate the specific area you wish to capture if you prefer to take a full-screen capture. The screen capture will appear in the default OneNote notebook and section.
