PC airflow guide: How to position your fans for best cooling

Exhaust fan in PC case.
Erik Gazi / Unsplash

Fan placement is an important component in your system’s cooling. The quantity, positioning, and orientation of fans affects overall system performance, noise levels, and how often you need to clean your whole system out. Although you aren’t going to see a dramatic difference in your PC’s performance from adding one more fan, or making sure they’re pushing instead of pulling (or vice versa), it’s still useful to optimize this part of your PC’s cooling to get the best experience for you, the PC user.

So, whether you’re looking to boost your system’s cooling to improve your overclock, or want to keep your fan speeds as low as possible without overheating, here’s a guide to PC airflow, as well as some suggestions on fan placement and position that you might find useful.

Get the basics down

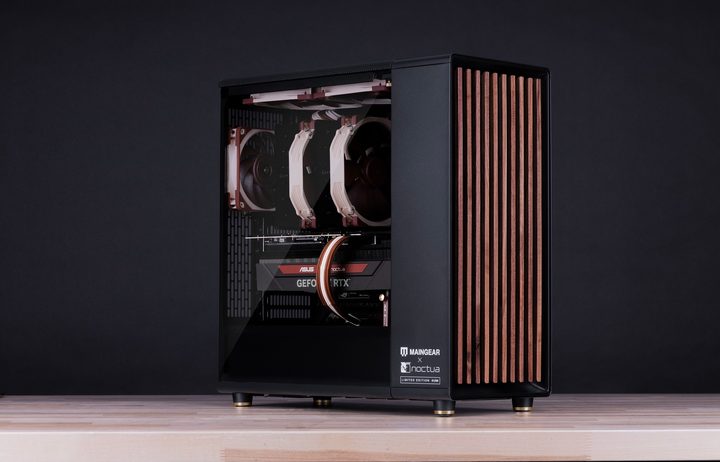

Maingrear Noctua air-cooled PC.
Maingear

One of the greatest sins of some budget prebuilt PCs is that they only come with a single fan. Often, it’s an exhaust fan, which is fine, but that doesn’t help much cool air get into the system, and it is unlikely to get all the hot air out once you start doing something demanding. That could well lead to some thermal throttling, and (as we’ll discuss more below) negative pressure is not ideal if you don’t want to have to clear out dust from all the nooks and crannies every six months.

If you want to just make sure you have the absolute basics that any PC should have, then you need to have at least one exhaust fan and one intake fan. Ideally, the intake fan should be slightly more powerful to ensure you have positive pressure, but that’s not as big a concern as just making sure you have some cool air being pushed or pulled into your PC, and another fan shoving the hot air back out again.

Diminishing returns

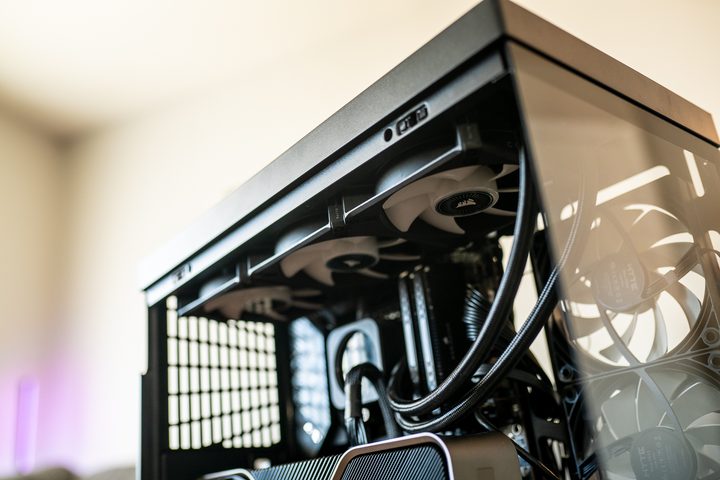

CPU cooler installed in the Hyte Y40 case.
Jacob Roach / Digital Trends

Do you want better cooling performance for your PC? Upgrade the CPU cooler first, and upgrade the GPU cooler if you can (or buy a better graphics card with a better cooler). If you’ve done that already and want to improve performance, just add more fans. Or better fans. But to be very clear, there are diminishing returns. A third intake fan is not going to improve performance by more than a degree or two over the two you already have. Converting an AIO radiator to have a push/pull configuration with fans on either side might shave off a couple of degrees, but is that worth the money you’d have to spend on it?

Upgrade your cooling if it’s currently unimpressive, but keep your expectations in check, and watch your budget. It might be better spent elsewhere.

Heat rises

Most PC cases have intake fans mounted on the front, and one or more fans mounted on the back to exhaust the heat. But heat rises, which means you’ll typically find the greatest air temperatures at the top of your case. Placing your exhaust fans in the roof can help get rid of hot air faster than if they’re at the rear.

The difference isn’t dramatic, but if you’re looking to min-max, don’t forget what heat likes to do when it isn’t being pushed and pulled around.

Positive pressure is key

If you hate cleaning out your PC (and who doesn’t?), then make sure it is running with positive pressure. That is, there is more air being pushed or pulled into the case,than pushed out of it. That means that any nooks, vents, holes, or gaps in panel work will have that extra air forced out of them. That keeps all the air going into your case moving through the dust filters at the front or underside. In a negative pressure scenario, where there is more air being pushed out than pulled in, you get air pulled in through all those holes and crannies, leading to unwanted dust buildup.

Technically, from a performance perspective, it’s more important to get rid of the hot air than it is to pump more cool air in to the case, but the difference isn’t dramatic — especially if you have a robust exhaust system already. Ensuring you are only getting external air in through a dust filter is more important for long-term system health.

Direct cooling helps

Lots of PC fans on a desk.
Andrey Matveev / Unsplash

System cooling doesn’t make a massive difference to component temperatures once you have the basics down, but you can see some positive results if you blow cool air directly onto the components you want to cool. If you have intake vents in the base of your case or in the side panel, placing fans there that blow cool air directly onto the graphics card will help lower its temperatures.

Depending on component placement and the size of your case, this may not be viable for the CPU cooler, but if you can get a fan that pushes cool outside air right on to a component you want to run cooler, it will have an effect.

Push is typically better than pull

Push versus pull is a long-running debate when it comes to PC cooling. “Pushing” is where the fan is mounted in front of the component or cooler and drives the air into it, while “pulling,” is where the fan is mounted on the rear of the component or cooler and draws the air through the cooling fins before reaching the fan. Though you will see slightly better temperatures with a fan mounted in push and another mounted in pull, there’s very little difference between push and pull configurations in isolation.

The Noctua NH-D15 CPU cooler.
Some fan configurations are technically push/pull/push. Noctua / Amazon

However, with a push fan orientation, you can rest assured that it is pushing the air from where you want it and into or across the component/cooling fins. With a pull configuration, it’s possible that the air will be drawn from somewhere else, depending on component or cooler placement, which may not be as ideal.

Watch out for turbulence

This one is more about cable tidying than it is about fan placement, but know this: If there is something in the way of your airflow, it will generate some noise, and it will reduce the effectiveness of the cooling. It won’t be by much, but just as direct cooling can make a difference, a fan that has a clear runway to blow cool air into a case and to the hottest components will be more effective than one that is blowing directly into a mess of cables.

Again, there’s diminishing returns here, but tidying away cables and placing fans where they aren’t impeded in their job will allow them to work better, leading to better performance and lower temperatures.
