How to set up and install the Google Nest Doorbell (battery)

We were seriously impressed with Google’s latest version of the Nest Doorbell, a battery-powered video doorbell cam with great A.I. detection features that fits perfectly into the Nest ecosystem of smart devices. It’s also designed for do-it-yourself (DIY) installation — although owners can still benefit from a few tips. Our walkthrough will make installing the battery version of the Nest Doorbell completely painless.

Note: This guide covers the latest battery-powered version. Some versions of the Nest video doorbell line are wired, not battery-powered. Wired models may not be compatible with every doorbell system and take a bit more work to connect even if you do have electrical experience. Make sure you know which model of Nest video doorbell you have before you begin!

Step 1: Pick a spot

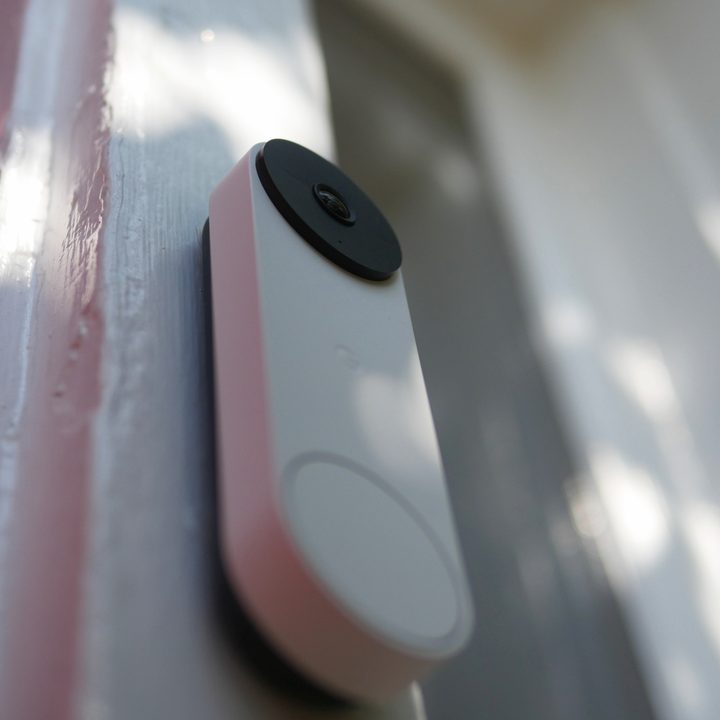

Closeup of Google Nest Doorbell (battery) on outside of door.
John Velasco / Digital Trends

Picking a location for the video doorbell isn’t always covered, but it’s a really important part of the installation. You need to find a spot by your door that has both a good vantage point to watch the porch area and an easy reach for activating the doorbell. Placing the doorbell on your door’s trim is a common choice, but this will cause some small damage to the trim, so make sure it’s where you want it. Installing it on nearby siding may also be possible, but some siding is made of tough composite materials that will resist drilling and screws.

When in doubt, place the doorbell about 4 to 5 feet off the ground. That may seem low, but video doorbell cameras are designed to work at this location. You will also need a 2.25-inch space above the doorbell so you have enough room to remove it for charging. Mark the spot with a pencil when you are ready.

Step 2: Gather your tools

Nest Doorbell required installation tools.
Image used with permission by copyright holder

What specific tools you need may vary based on your situation, but it’s a good idea to gather these tools in preparation:

  • A pencil
  • A Phillips head screwdriver
  • A drill with a 2mm (3/32-inch) drill bit
  • An additional 6mm (1/4-inch) drill bit
  • A hammer

Step 3: Scan your doorbell and charge it

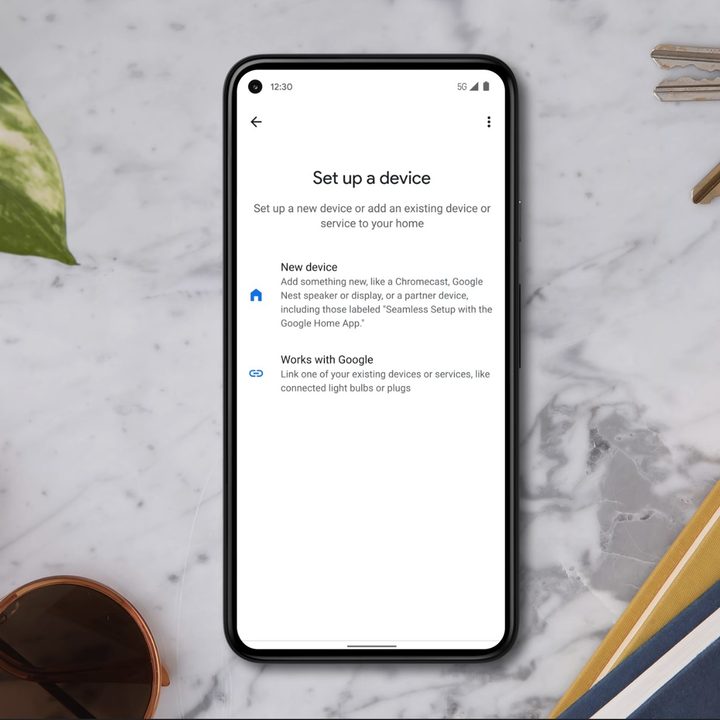

Setting up Nest Doorbell with Google Home.
Image used with permission by copyright holder

Sign in to your Google Home app. If you haven’t done this before, you’ll need to use your Google account login, so keep that handy. Select Add a New Device, and when prompted, scan the Nest’s QR code. The QR code is on the back of the Nest Doorbell (which is why it’s easier to do this step now than wait).

Plug the Doorbell in to make sure it’s fully charged before installing it. This is an excellent time to use the Google Home app prompts to connect it to your Wi-Fi network.  Select a location (Front Door is going to be a common choice here), and connect the Nest Doorbell. If given an option, choose the battery model.

Step 4: Double-check your Wi-Fi

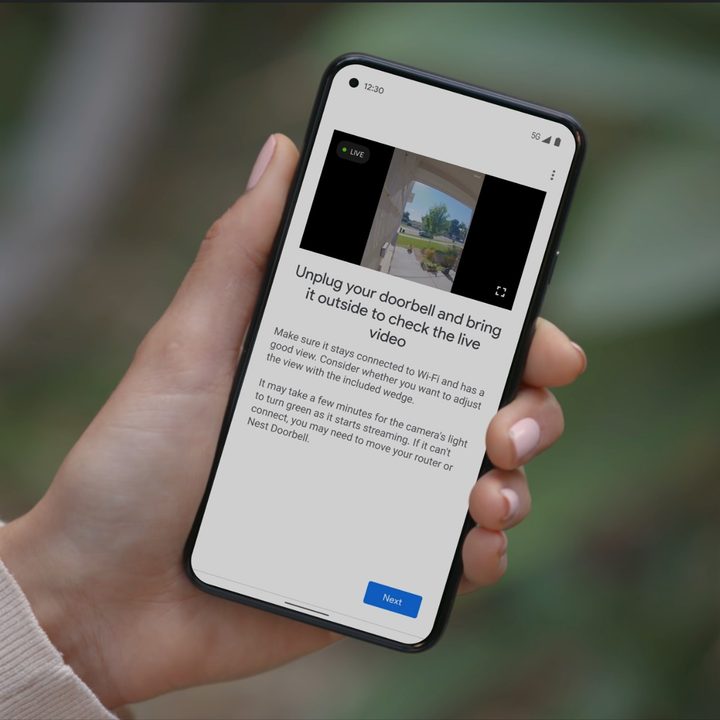

Using the Nest Doorbell test feed during setup.
Image used with permission by copyright holder

Eventually, Google will prompt you to take the video doorbell to your door. With the Doorbell connected to your network, take it outside and place it on the pencil marking you made. Check that the light above the cam is still green (signaling it’s connected), and use the live feed testing screen to make sure the video footage is strong.

If you aren’t getting a good Wi-Fi connection, try repositioning the doorbell. You can try the other side of the door, for example — but it’s not a good idea to adjust the height away from recommended levels. It may be easier to simply move the router inside your home closer to the front door.

Step 5: Position the base plate and drill the holes

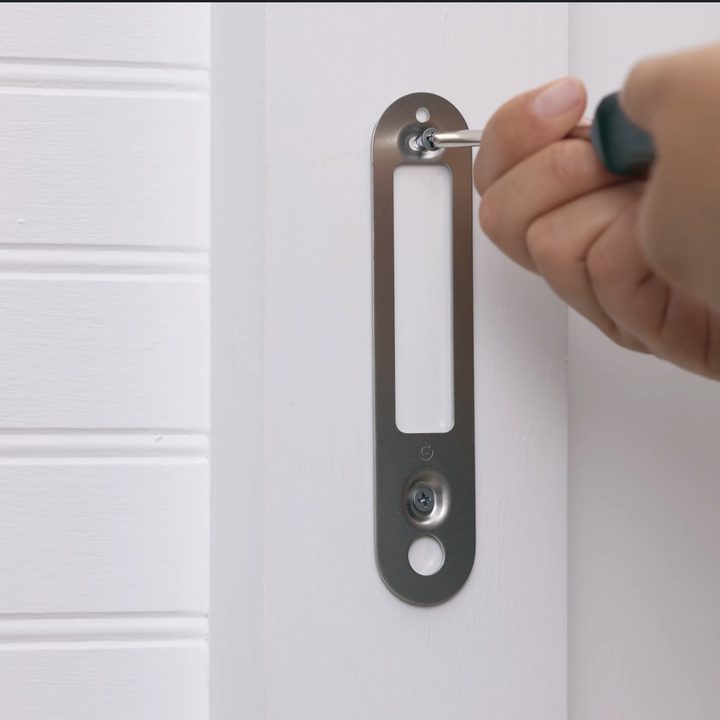

Nest Doorbell screwing in the base plate.
Image used with permission by copyright holder

Using your original pencil mark as a starting place, position the metal base plate for the Doorbell, and mark the two circles where the screws will go.

Important note: The Nest Doorbell also comes with a wedge you can use to change the angle of the doorbell. This usually isn’t necessary except for odd setups (like putting the doorbell on a side well), but if you are using the wedge, you will need to attach it first, so mark the screw locations with the wedge instead of the base plate.

When ready, drill a hole at each screw location using your 6mm (1/4-inch) drill bit. Use the smaller drill bit if you need to create starter holes on especially tough materials (although, again, not all materials can be successfully drilled).

Step 6: Attach the base plate

Google Nest Doorbell (battery) components laid out on floor.
John Velasco / Digital Trends

The screws for the doorbell come with anchors, which you can tap into the holes with a hammer. This is a good idea, especially if you are working with stucco, brick, or materials that may erode over time, like drywall. When finished, use your screwdriver to screw the base plate into the holes.

Two important notes: First, the base plate needs to be positioned with the “G” logo facing up. Second, the screws also come with small, flexible, washer-like buffers you can use to help level the base plate on uneven surfaces. You don’t need to use them, but they may come in handy.

Step 7: Attach the Nest Doorbell to the base plate

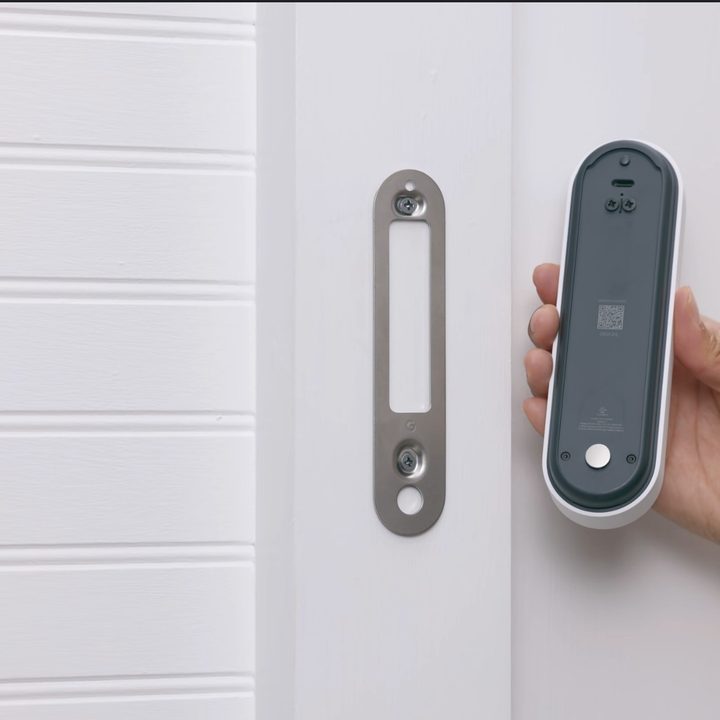

Nest Doorbell attaching the doorbell.

Align the Nest Doorbell on the base plate. The camera will be on the top and the doorbell button on the bottom. When you look at the back of the doorbell, you will see a small metal circle that will align with the circular hole at the bottom of the base plate. Push the doorbell in and down until you feel it click into place.

You can now finish setup on your Google Home app and start using the doorbell. This is an excellent time to set motion zones for better detection, allow the camera to detect familiar faces, set up automated voice responses, etc.

Step 8: Remove the doorbell when necessary

The Nest Doorbell comes with a release key that you can insert in a hole at the top of the unit to unlock it when necessary. If you lose this key, a tool like a flathead screwdriver will work, too.

When you get an alert that you need to recharge the doorbell, unlock it and connect it to power. It generally takes around five hours to fully charge again.
